    Automatic Hydraulic Casting Slabs CCM Machine With Cooling Bank

    Ask Lasest Price
    Brand Name : Haijun
    Model Number : R6M,R8,R10
    Delivery Time : 10 months
    Payment Terms : T/T , L/C
    Supply Ability : 3 strands CCM per year
    Certification : ISO9001-2008
    Price : Negotiable
    • Product Details
    • Company Profile

    Automatic Hydraulic Casting Slabs CCM Machine With Cooling Bank


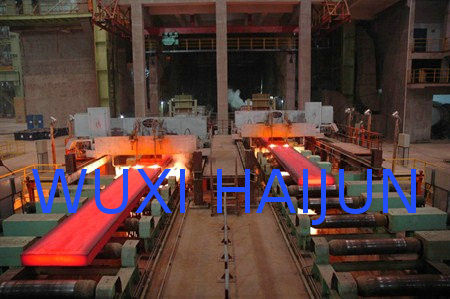

    Automatic Hydraulic Casting Slabs CCM Machine with Cooling Bank


    radius: R6M, R8M, R10M

    Strand number :1 / 2 strands

    Low energy and high efficiency

    with ISO certification

    advanced design

    safe operation


    Description:


    1. Basic standby technical parameters:

    Steel billet casting machine radius

    6m,8m,10m

    Strand quantity

    1,2 strands

    Ladle support type

    Ladle turret

    Tundish carriage

    Semi-portal, cross sliding function

    Casting method

    Metering nozzle, closed casting

    Secondary cooling

    Aerosol cooling , 3 adjusting circuit

    Withdrawal straightening machine

    Totally 5 roller, progressive straightening

    Roll table

    Chain group centralized drive

    Dummy bar

    Flexible chain dummy bar

    Billet cutting

    Hydraulic or flame cutting machine

    Billet conveying

    Group centralized live roller table

    Cooling bank type

    Step cooling bed


    2. Technical process description and capacity of steel billet CCM

    Induction furnace:

    Nominal capacity

    70T

    Tap-to-tap cycle

    60min

    Furnace quantity

    1set


    Production capacity

    Working days

    330 days/year

    Average number of daily furnace

    24/day

    Annual production:

    50,0000 ~ 1,000,000Ton


    3. Casting speed, productivity and strand quantity

    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

    Steel grade

    Casting grade(m/min)

    Effective deformation rate(ε)

    Allowable deformation rate(εmax)

    Straight carbon steel

    0.8~1.8

    Please refer to the computational table

    0.25

    Low alloy steel

    0.8~1.65

    Please refer to the computational table

    0.15~0.2


    4. CCM equipment parts list

    Ⅰ: Equipment body

    No.Equipment nameWeightTypeunitQuantity
    1 107TSigner arm load 100T, with cover, with lifting deviceset1
    Ladle turret
    2Steel water weighing system  set2
    3Rotary arm lift hydraulic system4T set1
    Withpreparation of power
    4Protection tube device1T set1
    5Rotary accident tank2T set1
    6 18×2=36T set2
    Tundish carWith lifting
    7 4.5×2=9T pcs2
    TundishInstitutions with Stopper
    8 4.5×2=9T set2
    Tundish baking deviceHydraulic flip
    9Protection tube0.35 set1
    10Tundish cover4.8T set2
    Heat-resistant cast iron
    11Tundish open cast-on system  set5
    12Stopper Control System  set2
    13Accident flow slag tank1.2T pcs2
    14 11×3=33T140×1000set3
    Mould~200×1400
     Adjustable
    15Vibration device24×2=48T set2
    Quick change type
    16 12×2=24T set2
    Secondary cooling 0 sectionWear-resistant hardfacing
    17 16×2=32T set2
    Secondary cooling sector sectionWear-resistant hardfacing
    18Sector straightening and withdrawal section23×8=184T set8
    Wear-resistant hardfacing
    19Secondary cooling sector base64×2=128T set2
    20Quick guide32T set1
    left and right Symmetrical
    21Straightening and withdrawal drive device1.8×4=7.2T set4
    22Aerosol spray device6×2=12T set12
    23Take Off the dummy bar device1×2=2T set1
    24Flexible dummy bar13T42Crset1
    42Cr Forged
    25Flame cutterⅠ13T set1
    26Hydrogen and oxygen generator  set2
    27Traverse roller26T set1
    28Dummy bar storage device30T set1
    29Roller table37×1.5=55T set37
    30Flame cutter Ⅱ6T set1
    31Hydrogen and oxygen generator  set1
    32Steel delivering machine22T set1
    33Straightening and withdrawal hydraulic station10T set1
    34Straightening and withdrawal hydraulic cylinder  set10
    35Mould water distribution system  set1
    360 section r water distribution system  set1
    37Ⅰsection water distribution system  set1
    38Ⅱsection water distribution system  set1
    39Straightening and withdrawal Ⅰsection water distribution system  set1
    40Straightening and withdrawal Ⅱsection water distribution system  set1
    41Turret lubrication system  set1
    42Tundish lubrication system  set1
    43Vibration lubrication system  set1
    44Secondary cooling 0~Ⅱsection  set3
    lubrication system
    45Straightening and withdrawal lubrication system  set4
    46Roller lubrication system  set4
    47Steel delivering machine  set1
    48Gas source and treatment system

    Ⅱ: Gas source and treatment system

    No.Equipment nameWeightTypeunitQuantity
    1Air compressor for aerosol cooling12×3=36T60M/minset3
    2Gas bag6×2=12T set2
    3Compressed air piping in workshop9T set
    4Instrument air compressor2.3×2=4.6T set2
    5Gas source and treatment system8T set1
    6Gas bag1.5T set1
    7Valve and piping  set

    Ⅲ: Water treatment systems

    No.Equipment nameWeightTypeunitQuantity
    1Canadian pharmacy equipment
    2Mechanical filter
    3First sedimentation tank equipment
    4Dosing pump
    5Medicine cabinet with stirring
    630 t oil-water separator
    7Inclined plate sedimentation tank (secondary)7.0×5.0×7.5m set5
    8Piping parts and water pumps
    990°Elbow  pcs114
    10Rigid waterproof case  piece34
    11Water cooling town   4
    12Various types of valves
    13Water treatment control equipment
